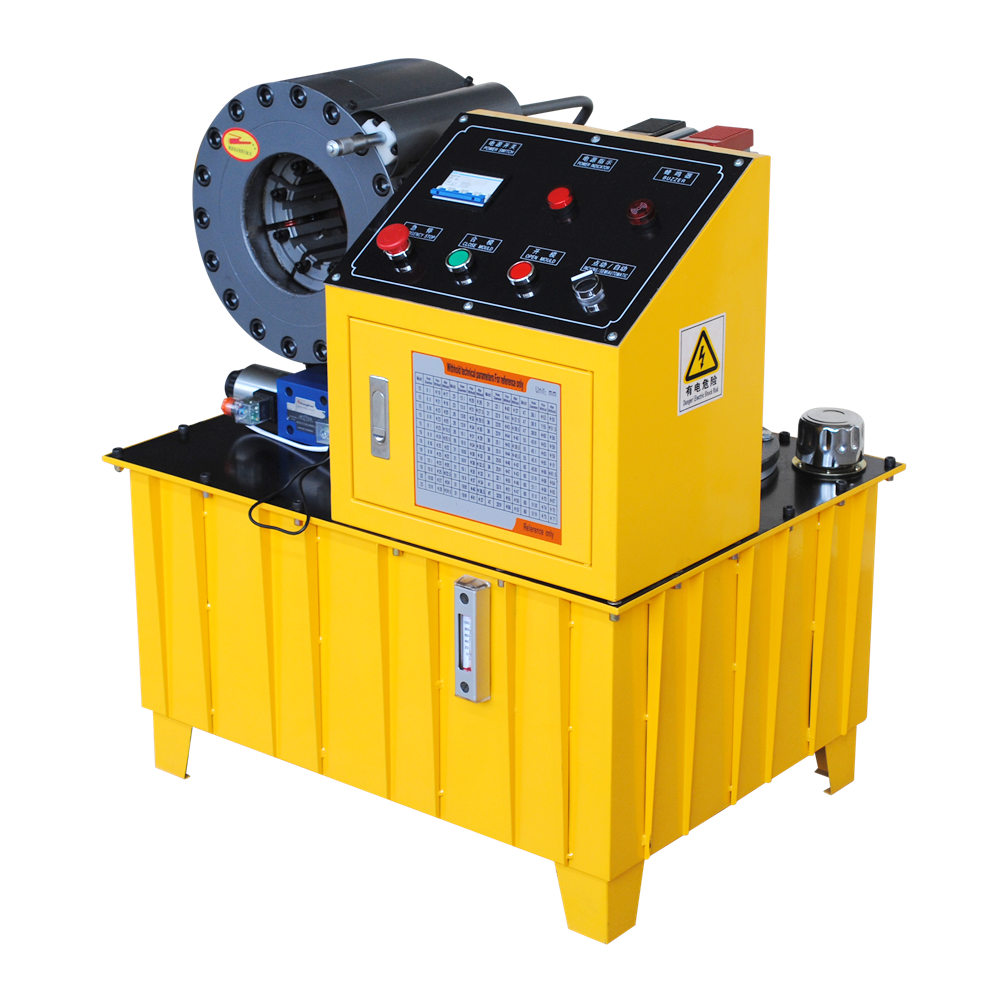

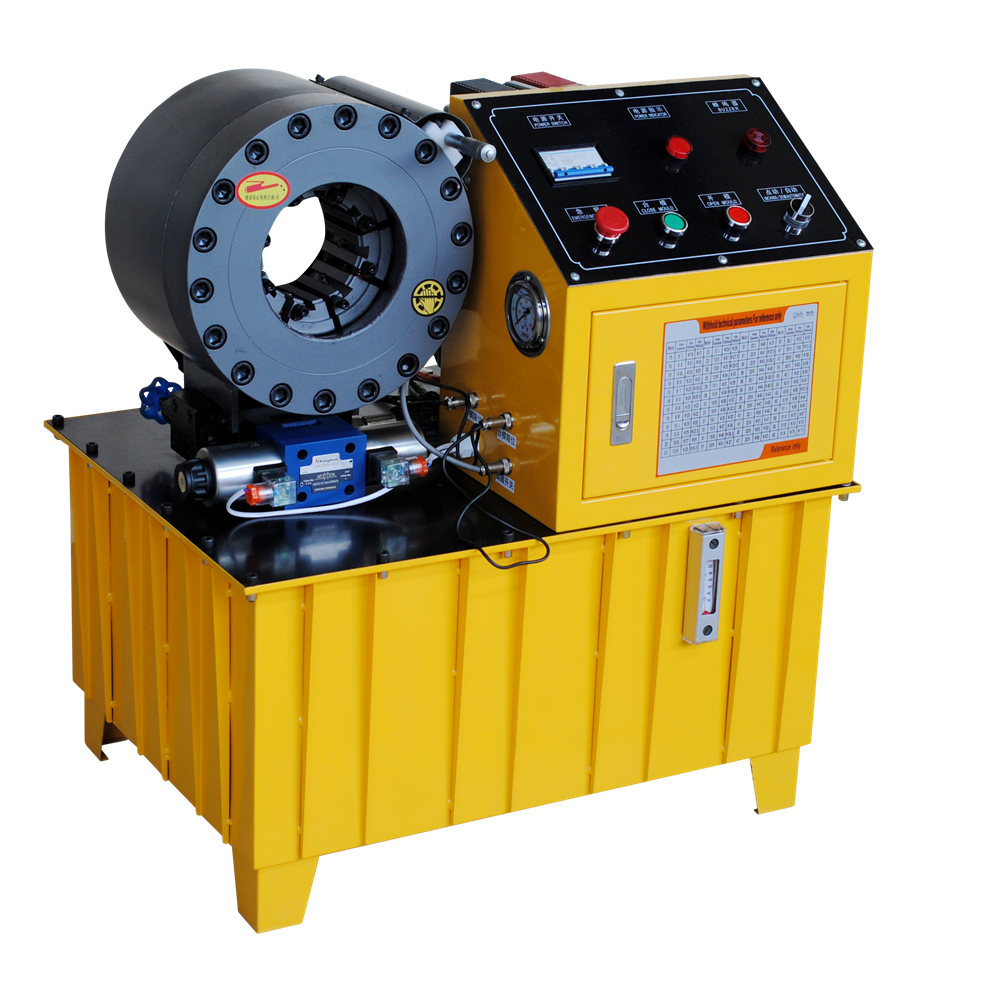

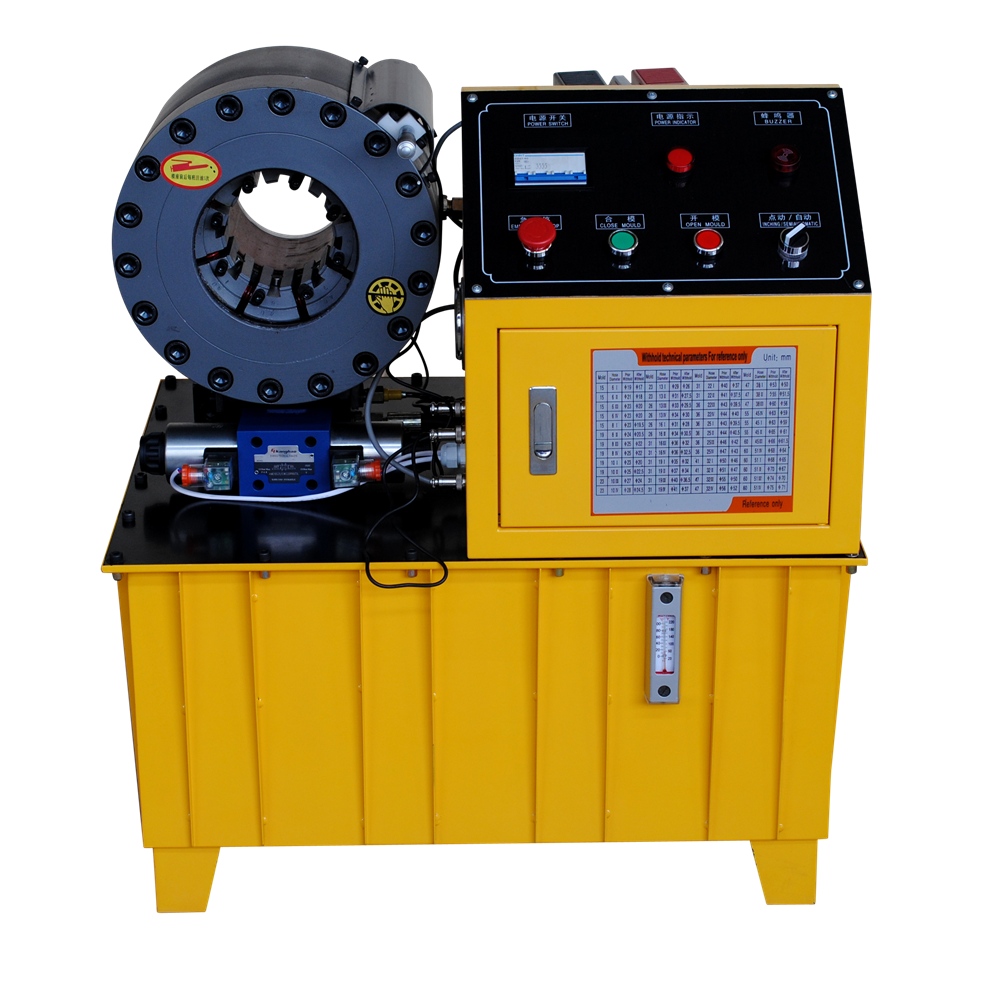

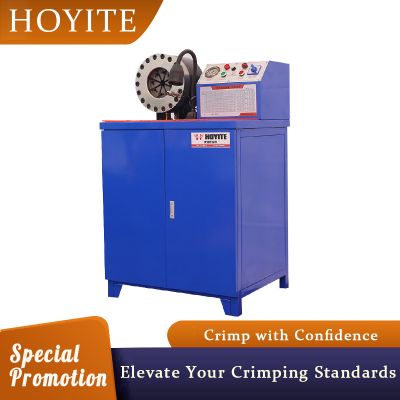

Hydraulic hose crimping machine button type 2"
Hydraulic hose crimping machine button type 2" Hydraulic hose crimping machine button type 2" Hydraulic hose crimping machine button type 2" Hydraulic hose crimping machine button type 2"

Hydraulic hose crimping machine button type 2"

Product ID : HYT-51
Product Tags : Crimping Machine
Product Attributes :

The HYT - 51F 2" hydraulic Button Type Crimping Machine is really great. Its big opening makes it easy to insert the hose. It gives very accurate crimping for really secure joints. The button - controlled panel makes operation simple, and the anti - accidental - touch foot controller adds a lot of convenience. This Button Type Crimping Machine is a very reliable choice for efficient hose crimping in many work situations.

Product Description

HYT-68 2" 4S Hydraulic Hose Press machine

The HYT - 51F 2" hydraulic Button Type Crimping Machine is really great. Its big opening makes it easy to insert the hose. It gives very accurate crimping for really secure joints. The button - controlled panel makes operation simple, and the anti - accidental - touch foot controller adds a lot of convenience. This Button Type Crimping Machine is a very reliable choice for efficient hose crimping in many work situations.

Product Description

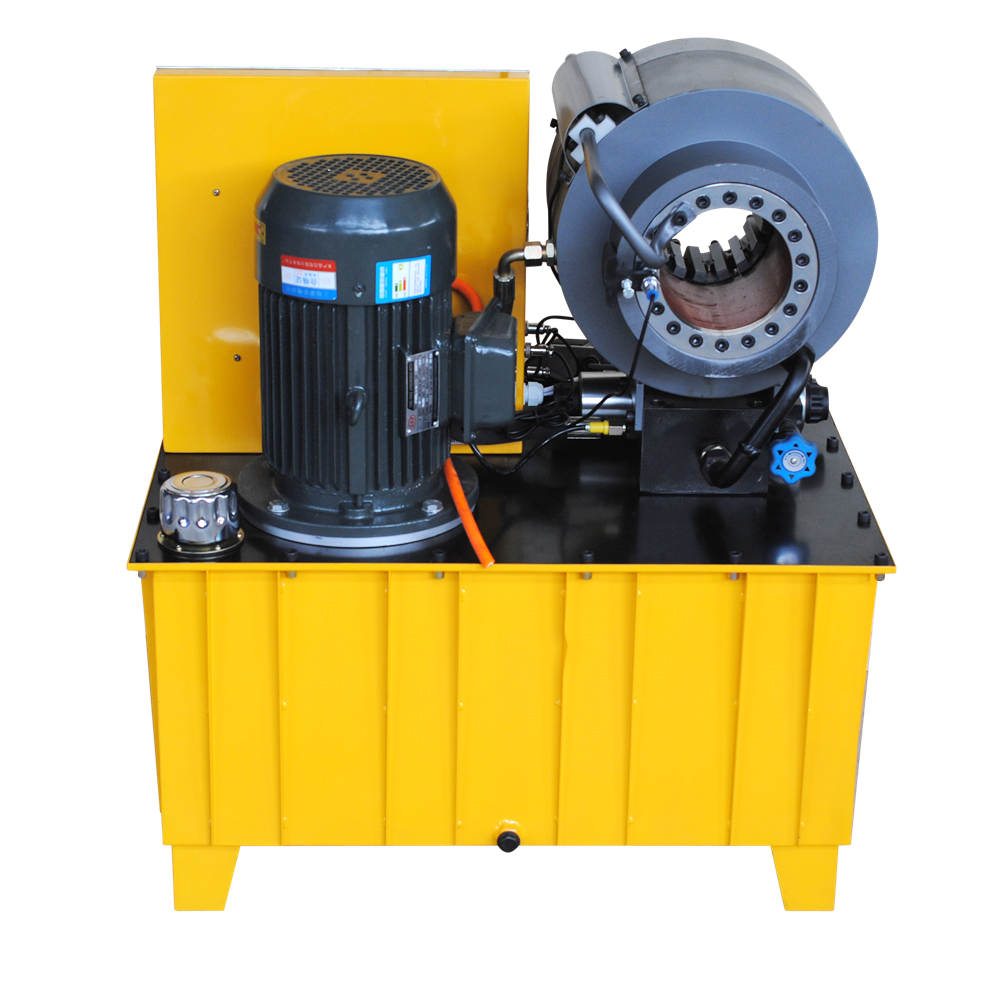

Powerful Motor: The pure copper wire motor, enclosed in a vivid yellow body, provides robust power. Copper's high conductivity ensures long - lasting stability for continuous crimping tasks.

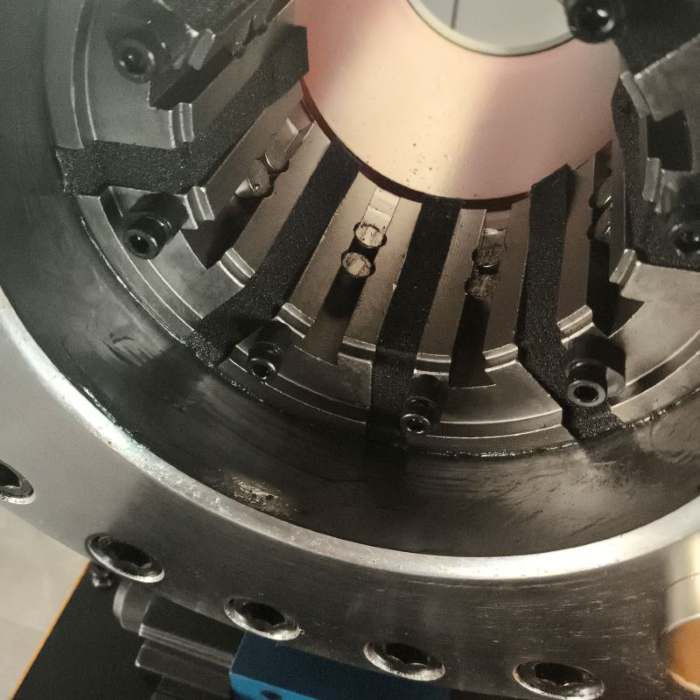

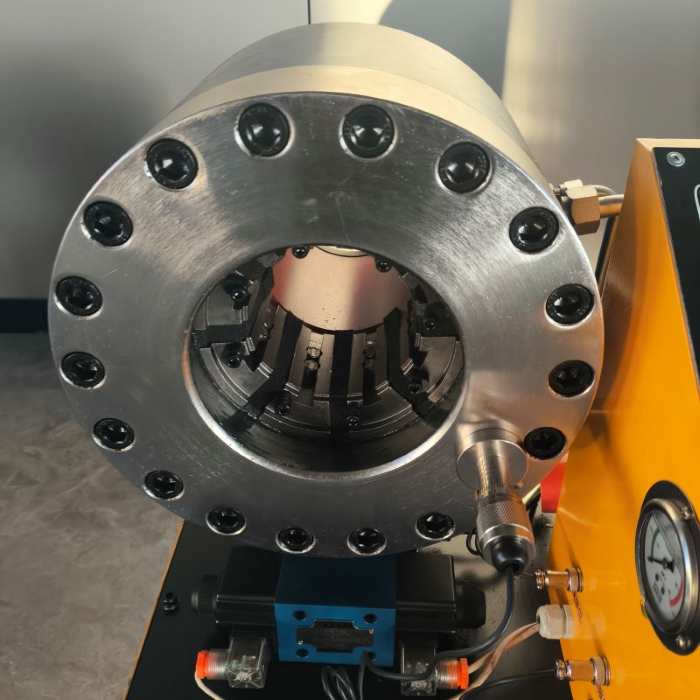

Durable Head: An integrated forged head, crafted with precision, is fixed on the distinct yellow framework. It's built to endure heavy - duty crimping over extended periods.
Safe Operation: The control pedal on the yellow - hued machine is designed to prevent misoperation. Its layout and functionality enhance safety during machine use.
Cost - effective Components: This device is equipped with well - known branded components. They offer an unbeatable cost - performance ratio for efficient hose crimping.



Technical Parameter

HYT-51 Hydraulic hose crimping machine button type 2"
Crimp Range
1/4"~2"(6~51mm) 4s
Voltage
380 V/220V
Motor
4 KW/3KW
Max Opening
114 mm
Hydraulic Oil Box
40L(USE 32L)
System Pressure
31.5 MPa
Crimping Force
500T
Mold
10 sets
Quick Mold change
Option
Work Efficiency
200 pcs/hour

Package & Warranty

Package

    • Prepare fumigation-free wooden pallets compliant with export standards for packaging, ensuring convenient inspection.
    • Secure the machine onto the wooden pallet to prevent any slipping and shaking.
    • Wrap the machine with a moisture-proof film to safeguard against dampness and abrasion that might occur during transportation.

Warranty

    • We offer a lifetime warranty for our machines.
