HYT-51G 2" 4S Hydraulic Hose Crimping Machine
HYT-51G 2" 4S Hydraulic Hose Crimping Machine HYT-51G 2" 4S Hydraulic Hose Crimping Machine HYT-51G 2" 4S Hydraulic Hose Crimping Machine HYT-51G 2" 4S Hydraulic Hose Crimping Machine HYT-51G 2" 4S Hydraulic Hose Crimping Machine

HYT-51G 2" 4S Hydraulic Hose Crimping Machine

Product ID : HYT-51G
Product Tags :
Product Attributes :

This machine features a high - end one - piece cast machine head. The crimping size ranges from 1/4" to 2". It is controlled by a foot pedal and equipped with a button control panel that is easy to operate. Additionally, there is a large - capacity storage cabinet for storing tools.

Product Description

HYT-51G 2" 4S Hydraulic Hose Crimping Machine

Product Description

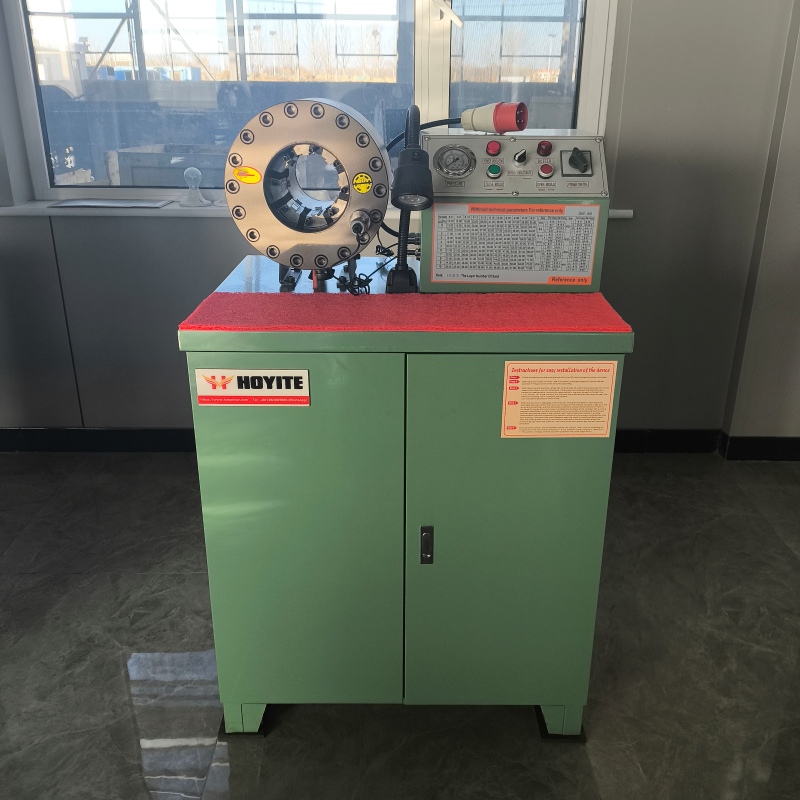

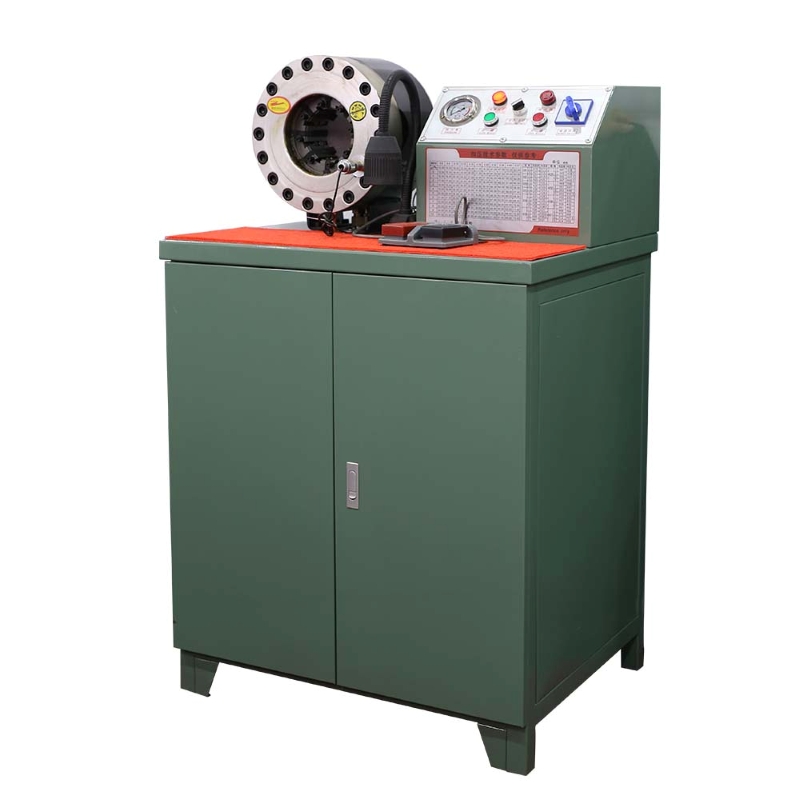

    • The machine has a dark - green appearance. Its head is forged integrally and has a large opening.

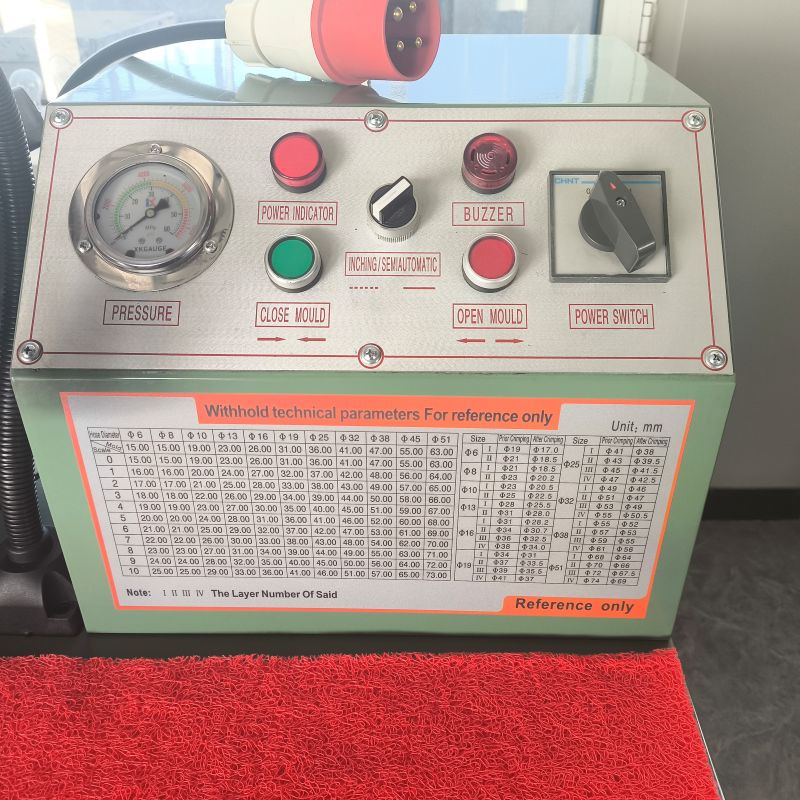

    • It can controlled by a foot pedal. CNC & touch screen controller is optional, and there's a large storage cabinet for tools.
    • Multiple voltage specifications are available. Quick - change mold can be installed optionally for high efficiency.
    • It has high crimping accuracy. All parts are from well - known brands.

Technical Parameter

HYT-51G 1/4"~2" Hydraulic Hose Crimping Machine
Crimp Range
1/4"~2"(6~51mm) 4s
Voltage
380 V/220V
Motor
4 KW/3KW
Max Opening
114 mm
Hydraulic Oil Box
40L(USE 32L)
System Pressure
31.5 MPa
Crimping Force
540T

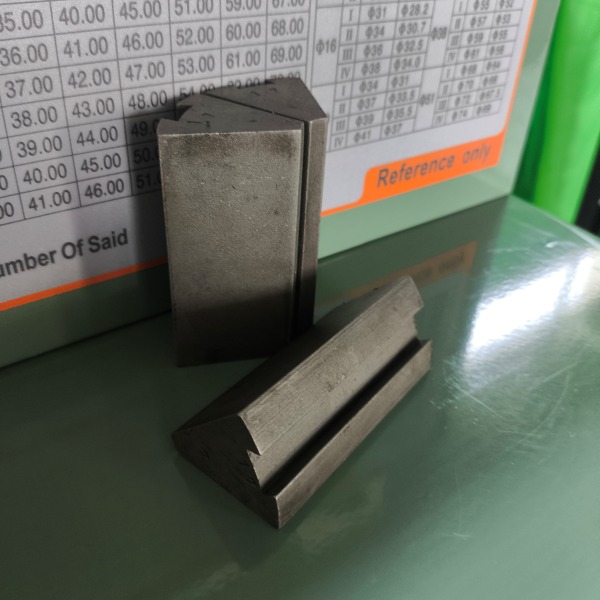

Mold
10 sets
Quick Mold change
Option
Work Efficiency
200 pcs/hour

Package & Warranty

Package

      • Prepare fumigation-free wooden pallets compliant with export standards for packaging, ensuring convenient inspection.
      • Secure the machine onto the wooden pallet to prevent any slipping and shaking.
      • Wrap the machine with a moisture-proof film to safeguard against dampness and abrasion that might occur during transportation.

Warranty

      • We offer a lifetime warranty for our machines.

Payment & Shipping

    • Payment: L/C, D/P, T/T, Western Union, MoneyGram
    • Shipping: The main method of transport is sea or air. FEDEX/DHL/UPS/TNT for samples
