HYT-51 1/4"-2" 4SP Yellow Hydraulic Hose Press Machine

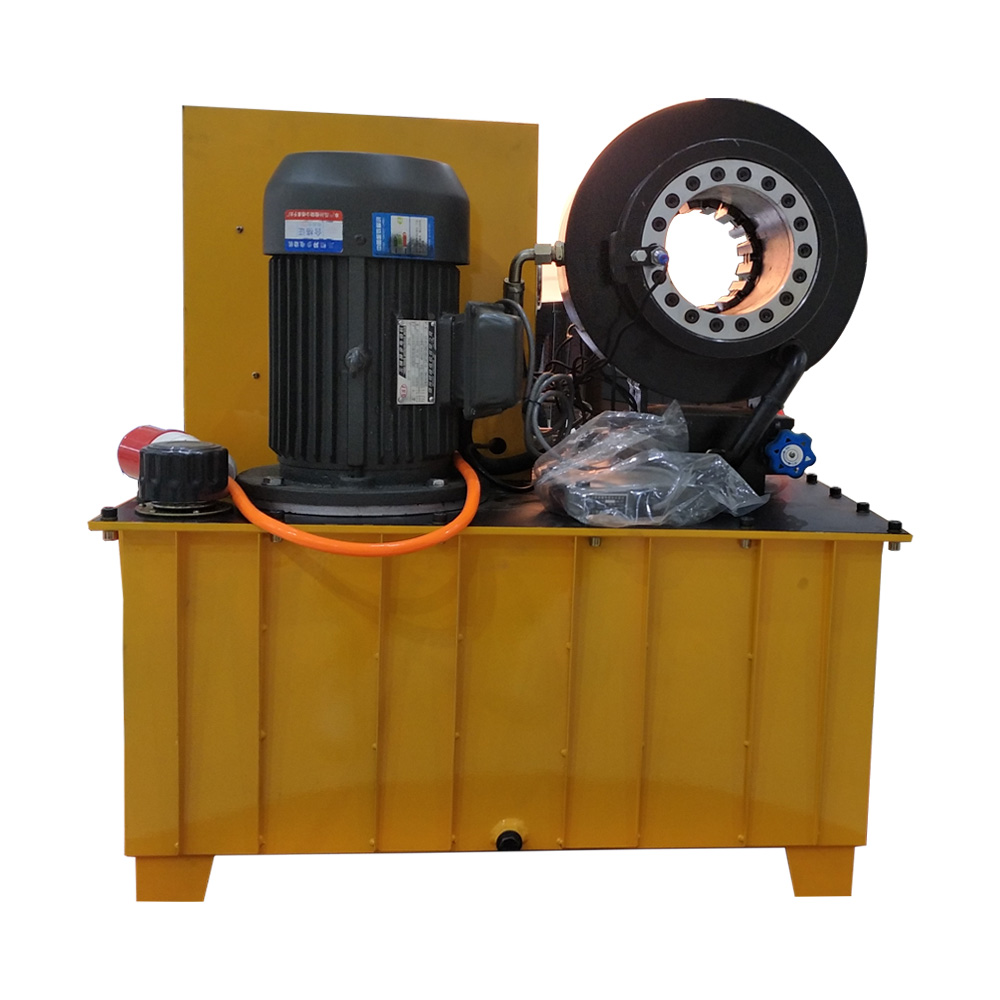

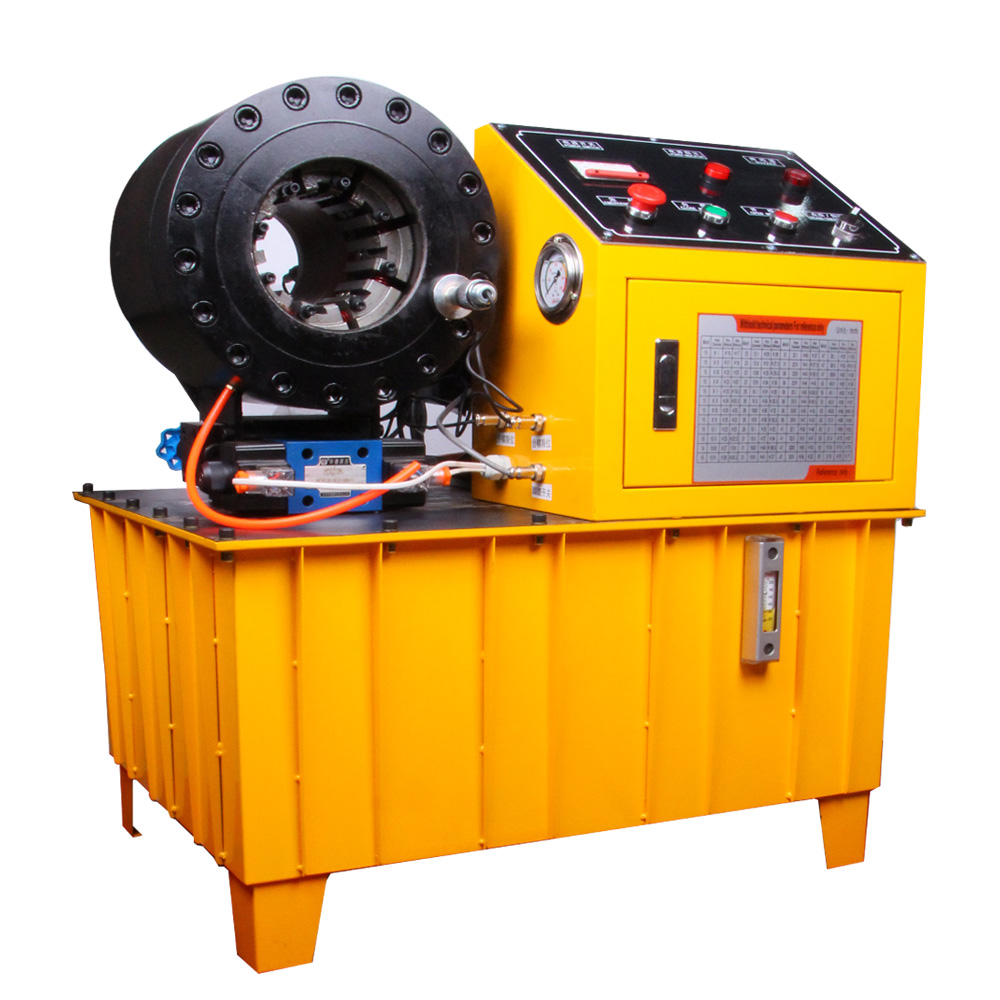

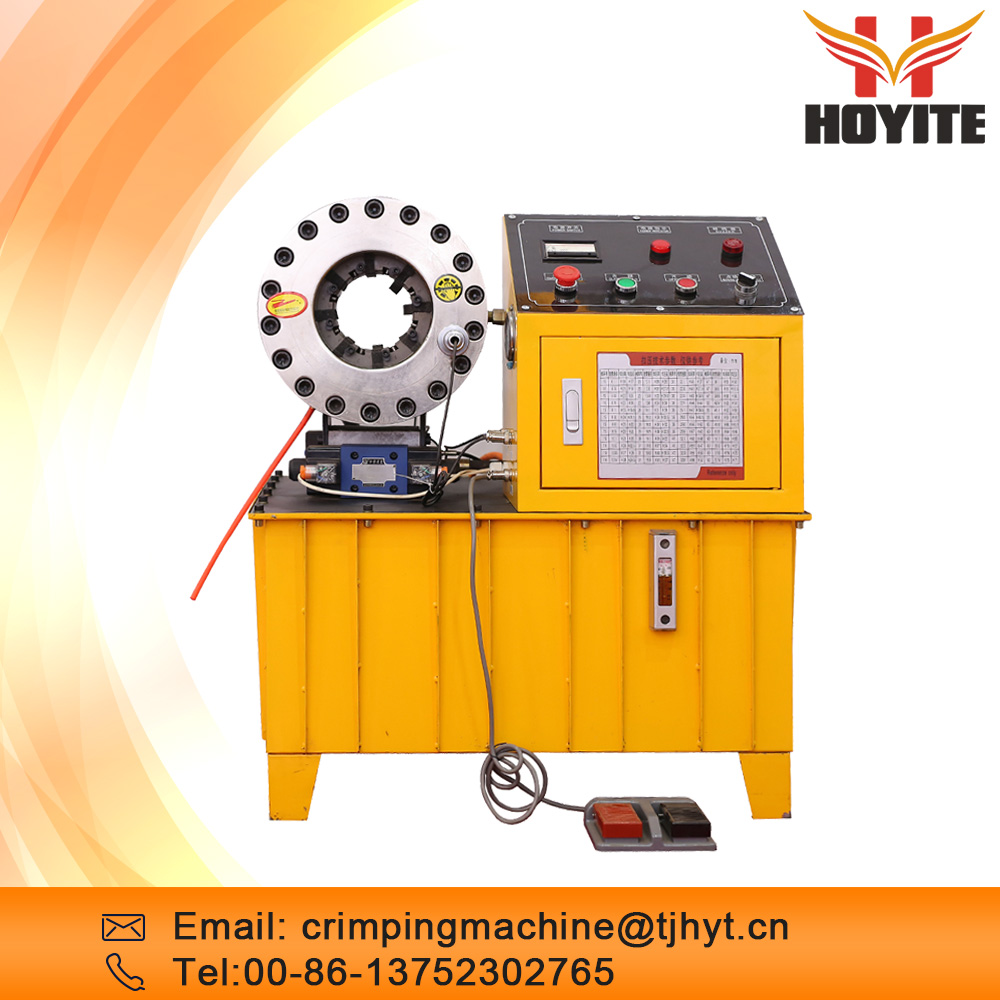

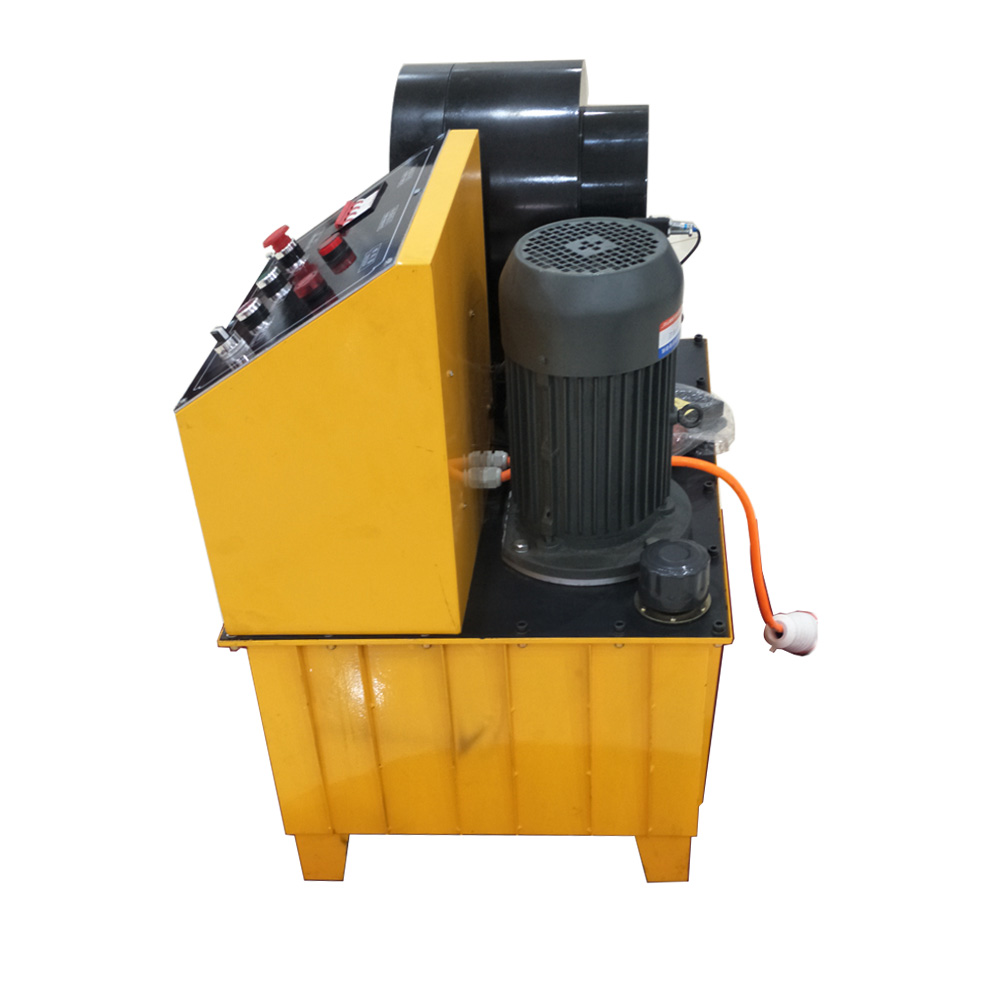

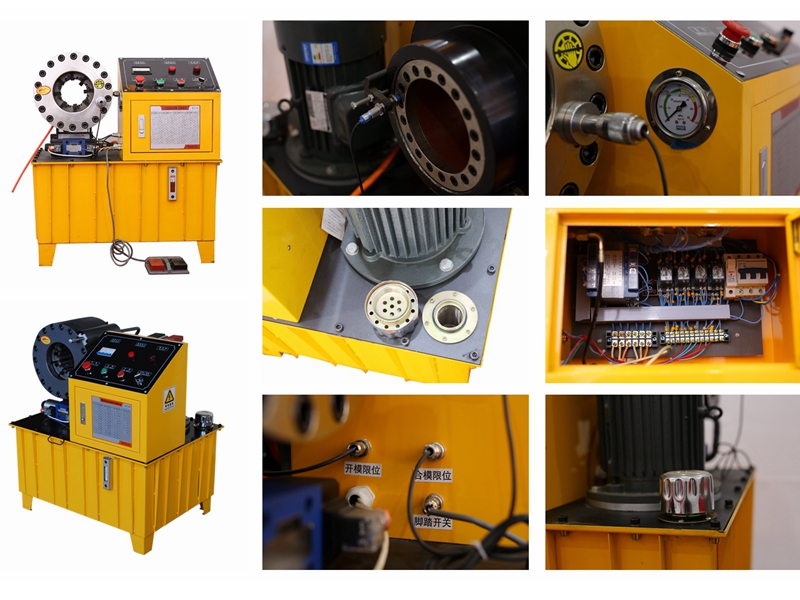

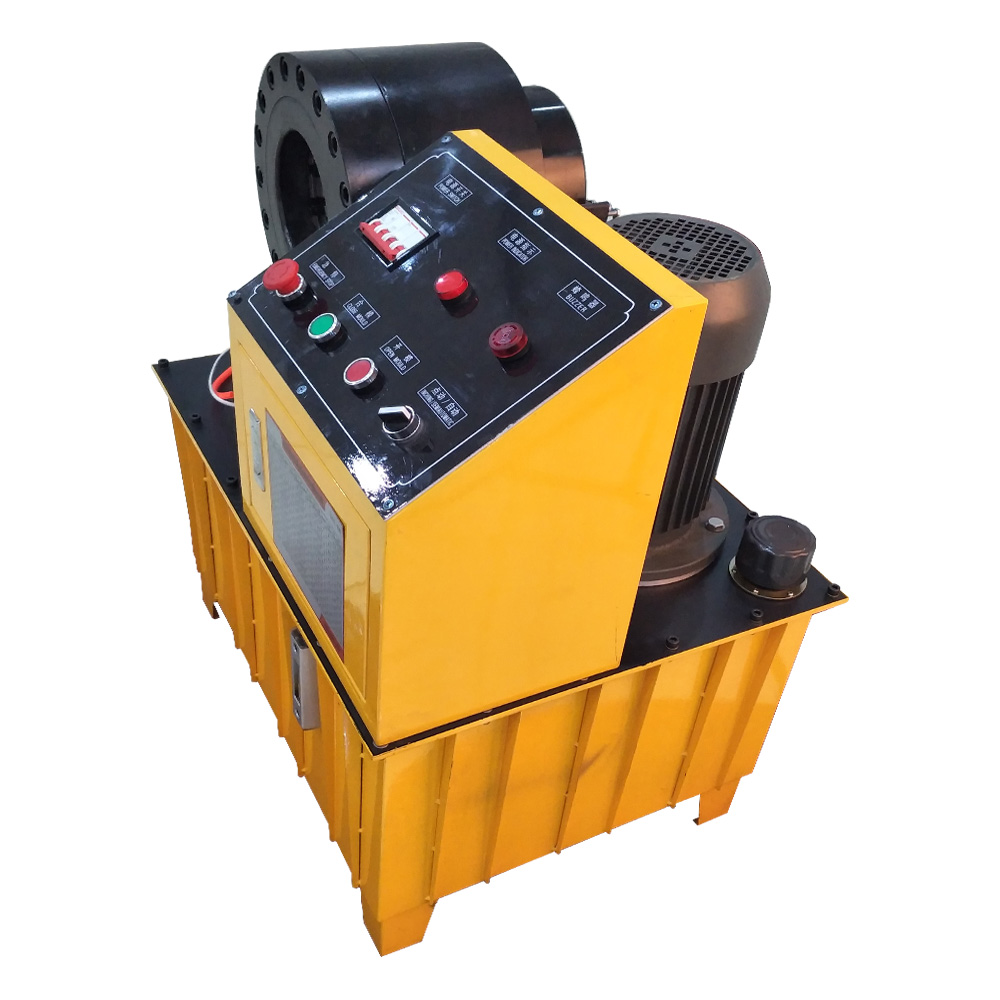

Yellow Hydraulic Hose Press Machine Reference Picture:

The HYT-51 Yellow Hydraulic Hose Press Machine is equipped with a computer numerical control system allowing for efficient and reliable crimping. It boasts features such as precision, strength, low noise emissions, and easy operation. The mold base is designed with a double-slope eight-lobed shape and includes high-precision guide devices to ensure consistent and accurate indexing. This machine is an ideal choice for crimping hydraulic hose assemblies in mechanical engineering as well as steel pipe crimping, even for large and non-uniform shapes.

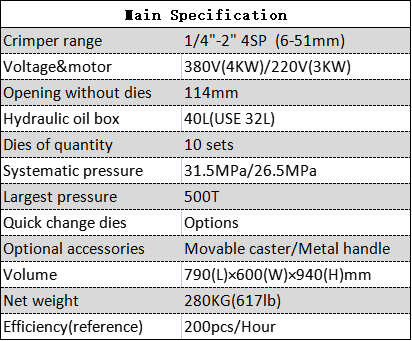

Yellow Hydraulic Hose Press Machine Specification:

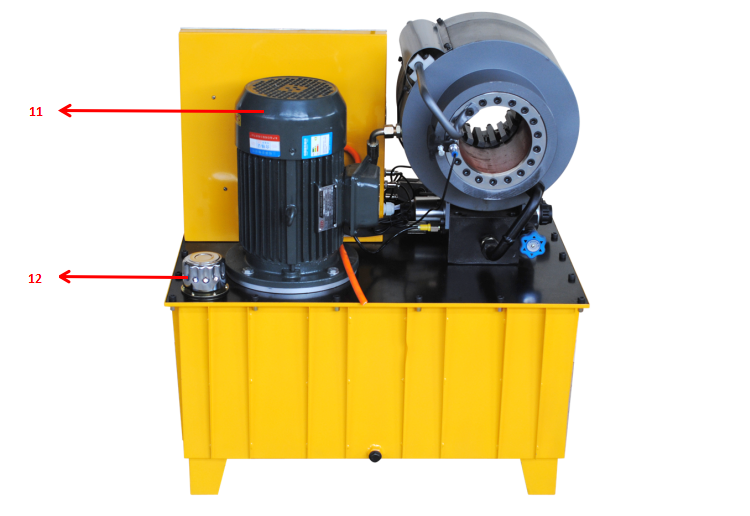

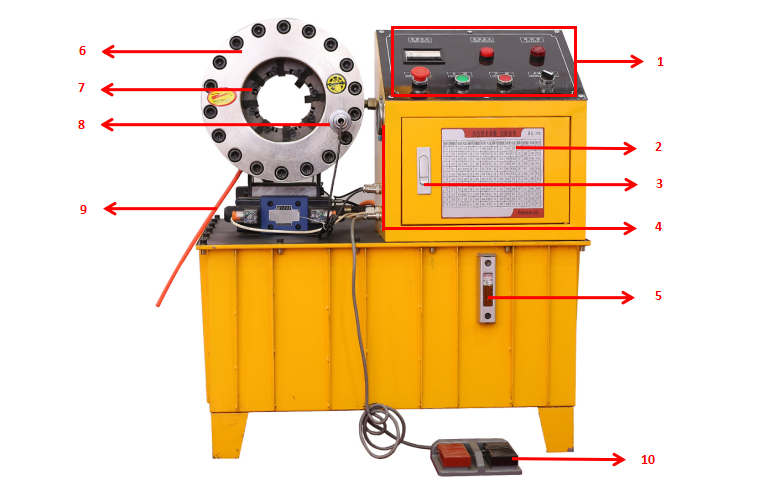

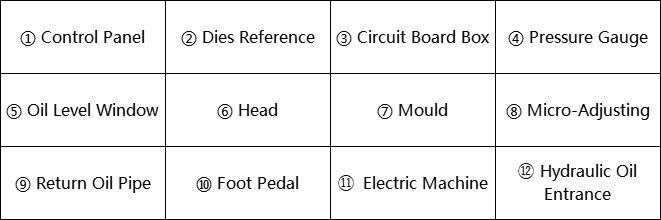

Yellow Hydraulic Hose Press Machine Outline Drawing:

User Guide For Yellow Hydraulic Hose Press Machine:

1. Mount the crimping machine on a workbench.Depending on the weight of the crimping machine, the workbench must be able to support at least 300 pounds or more

2. Remove the plug from the hydraulic reservoir located on the crimping machine

3. Insert one end of a length of hydraulic hose into the hydraulic hose fitting. Make sure it is securely in place.

4. Set the micrometer on the hose-crimping machine according to manufacturer specifications for the kind of hose and fitting you are using. Find these specifications in the hose-crimping machine's manual.

5. Place the fitting end of the hose into the crimping machine and line up the fittings mark on the machine with the top of the hose.

6. Insert the compression ring into the crimping machine.

7. Activate the hose-crimping machine. The crimping machine's press will exert pressure on the compression ring, causing the compression mechanism to press against the hydraulic hose fitting and crimp it in place.

8. Repeat this process with the remaining end of the hydraulic hose.
