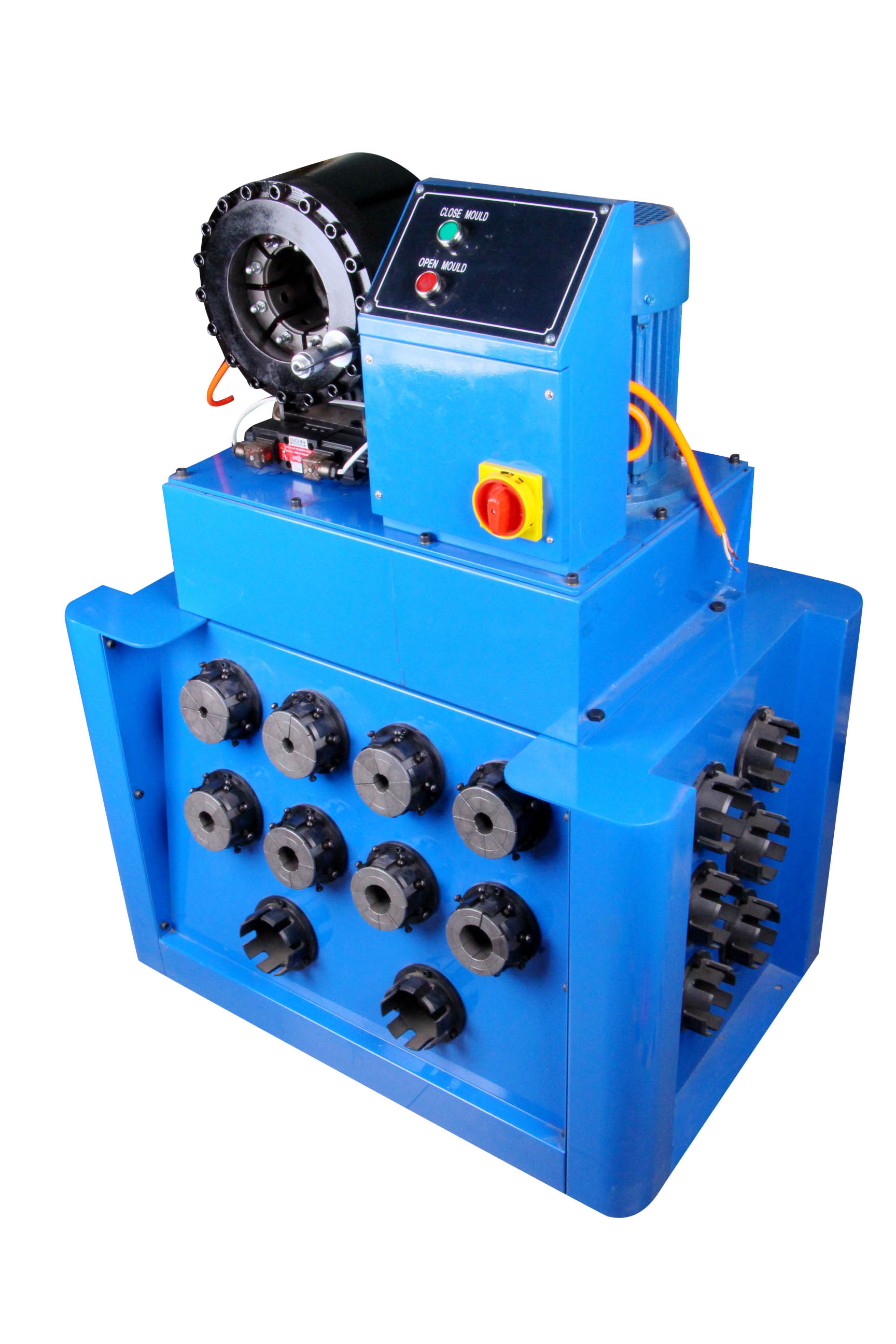

CNC Version HYT-38C Crimping Machine

TECHNICAL DATA

Crimper range 1/4"-/2"(6-51mm)

Efficiency(reference) 200pcs/Hour

Hydraulic hose size (inch) 2 *

Die set series 10

Max opening without dies (mm) 110

Motor Power (kW/HP) 380V(4KW)/220V(3KW)

Oil tank volume 35L(USE 32L)

Volume(LxWxH) 95x63x70cm

Net weight 260KG(573lb)

MANUFACTURER ADVANTAGE

1）The factory was established in 1998, and the international business has been in operation for 12 years.

      Stable quality, stable delivery speed, stable price

2）Provide hose assemblies required for various types of equipment

      Qil field equipment, construction machinery, agricultural machinery

3）Support all-round customized production, high-level technical team full service.

      One step solution to all special needs

4）Obvious price advantage, The bulk purchase price is 10% lower than the market price
