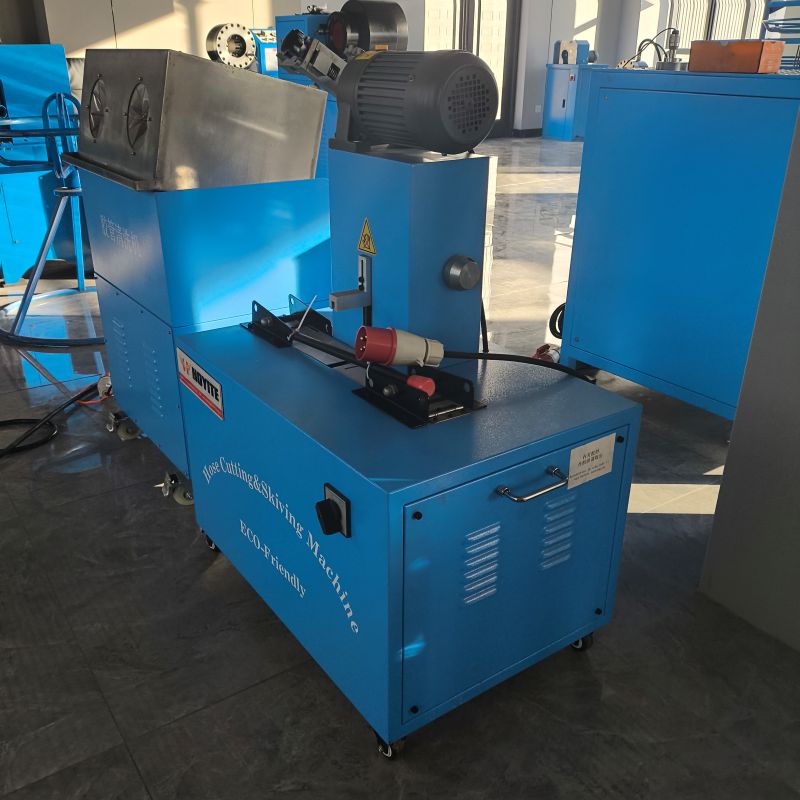

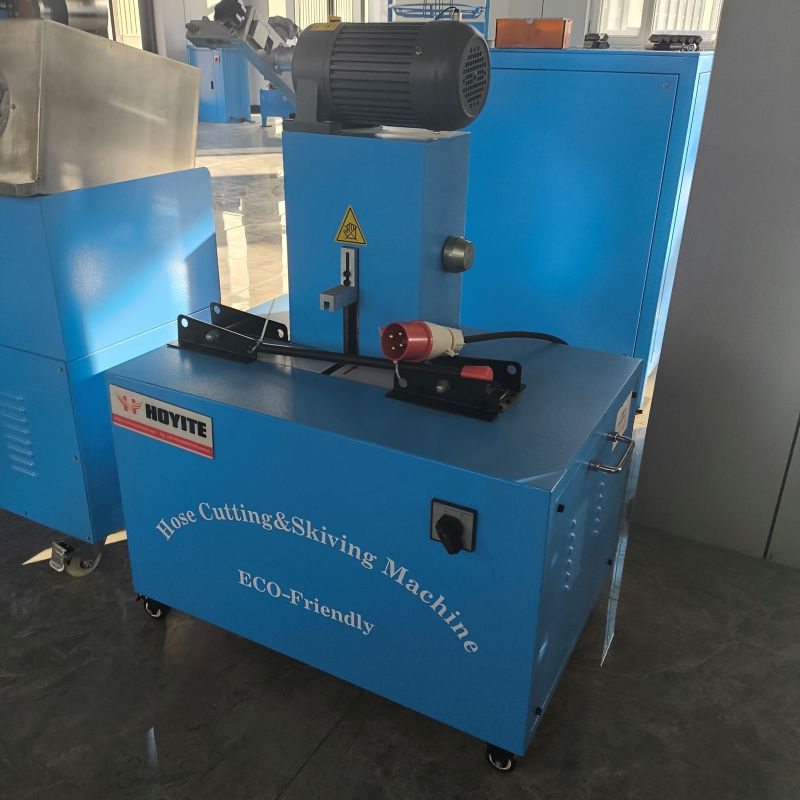

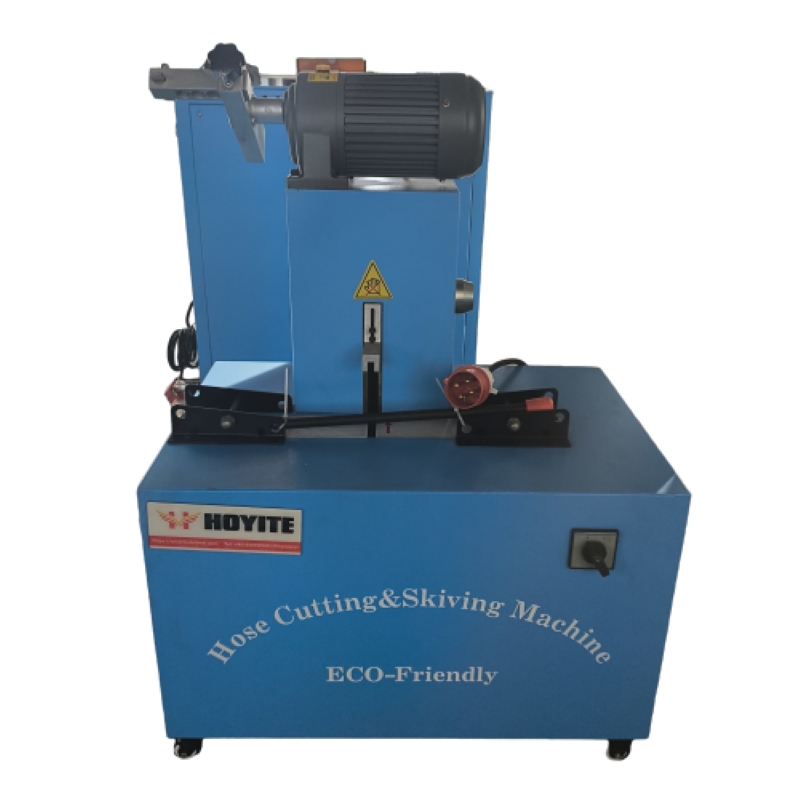

HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine
HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine

HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine

Product ID : HYT-B201
Product Tags :
Product Attributes :

HYT-B201 Hydraulic Hose Cutting&Skiving machine, It can cut hoses and skiving rubber cover. You get two functions in one machine, which costs less than buying two machines. It saves you trouble, effort and shipping fees. When skiving rubber cover of the hose, it leaves no leftovers and keeps the steel wires inside safe. The pipe - cutting is clean and doesn't make any dust.

Product Description

HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine

Product Description

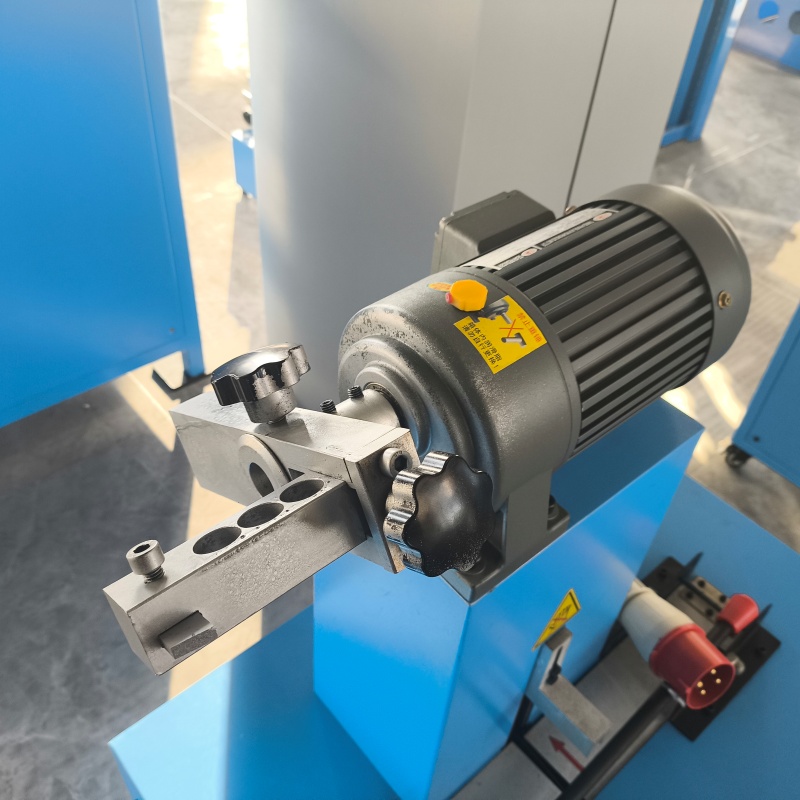

  • The good - quality rubber - stripping blade and the distance - adjusting knob can peel off the outer rubber layer precisely without harming the tube.

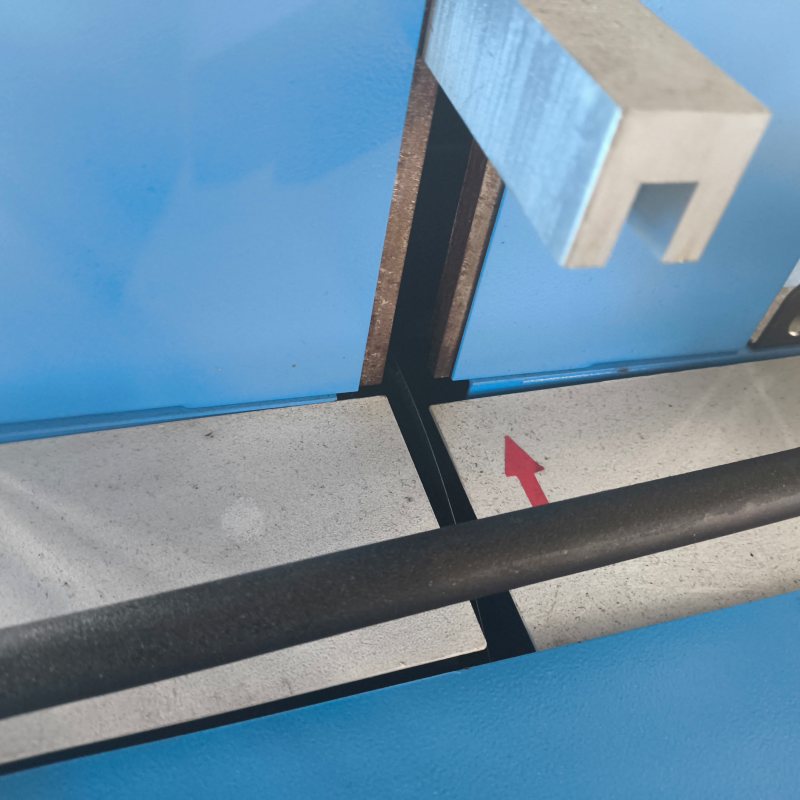

  • The imported cutting blades can cut fast without hurting the steel wire.
  • It has a function to suck away smoke and dust, which is good for the environment and keeps things clean.
  • It's small and light, so it's easy to move around.

Technical Parameter

HYT-B201 2" 4S Hydraulic Hose Cutting&Skiving Machine
Cutting Range
1/4"~2"(6~51mm) 4s
Crimping Range
1/4"~2"(6~51mm) 4s
Voltage
380 V/220V
Motor
4 KW/3KW
Blade Diameter
300mm
Blade Quantity
1 Pcs
Skiving Knife
1 Pcs
Crimping Force
500T
Volume
850*600*1240mm (L*W*H)
Net Weight
150kg
Work Efficiency
500 pcs/hour

Package & Warranty

Package

    • Prepare fumigation-free wooden pallets compliant with export standards for packaging, ensuring convenient inspection.
    • Secure the machine onto the wooden pallet to prevent any slipping and shaking.
    • Wrap the machine with a moisture-proof film to safeguard against dampness and abrasion that might occur during transportation.

Warranty

    • We offer a lifetime warranty for our machines.

Payment & Shipping

  • Payment: L/C, D/P, T/T, Western Union, MoneyGram
  • Shipping: The main method of transport is sea or air. FEDEX/DHL/UPS/TNT for samples
