1/4"~1-1/2" 4S Button Type Hydraulic Hose Crimping Machine

HYT-38C 1/4"~1-1/2"4S Button Type Hydraulic Hose Crimping Machine

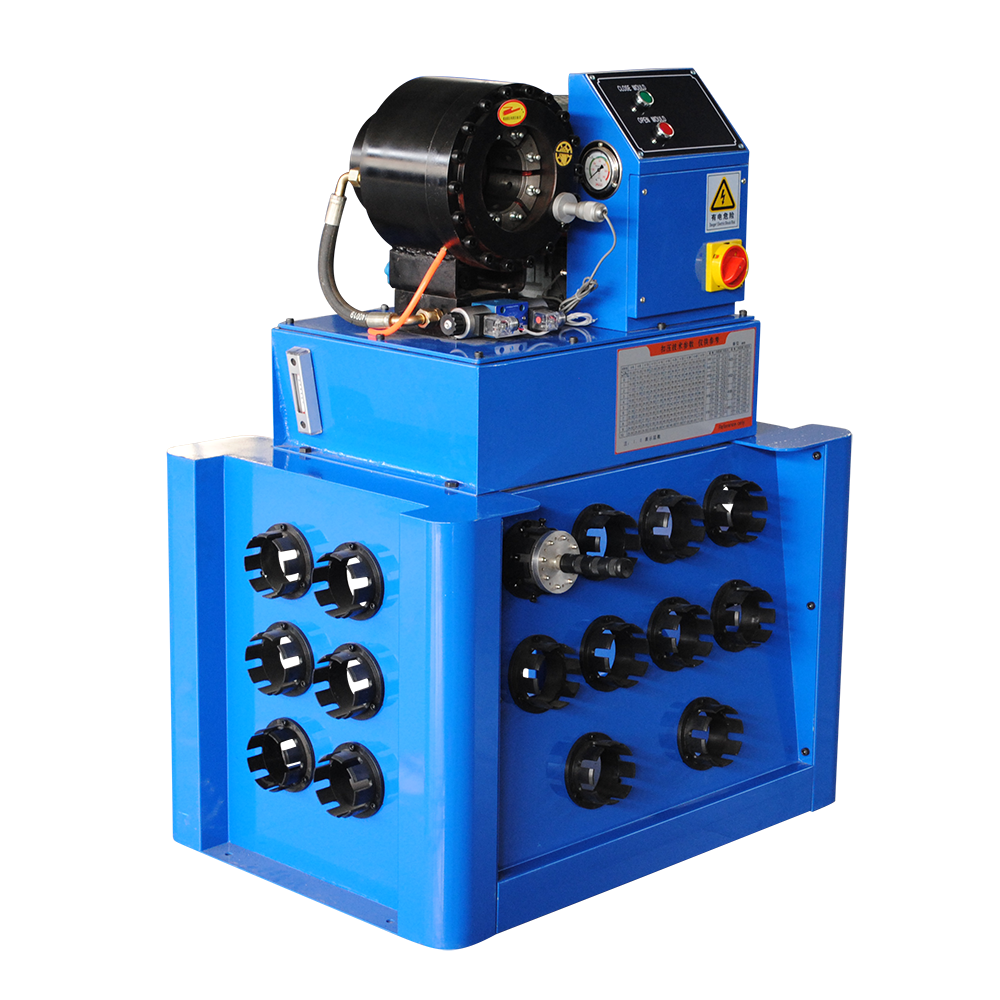

Construction:

1.High quality forged steel head,robust and wear-resistant, long service life.

2.Button operation panel,which can withhold the pipe much more precise.

3.Regular size head,suitable for crimping pipes from 1/4" to 1-1/2" inches, such as oil pipes, water pipes, etc.

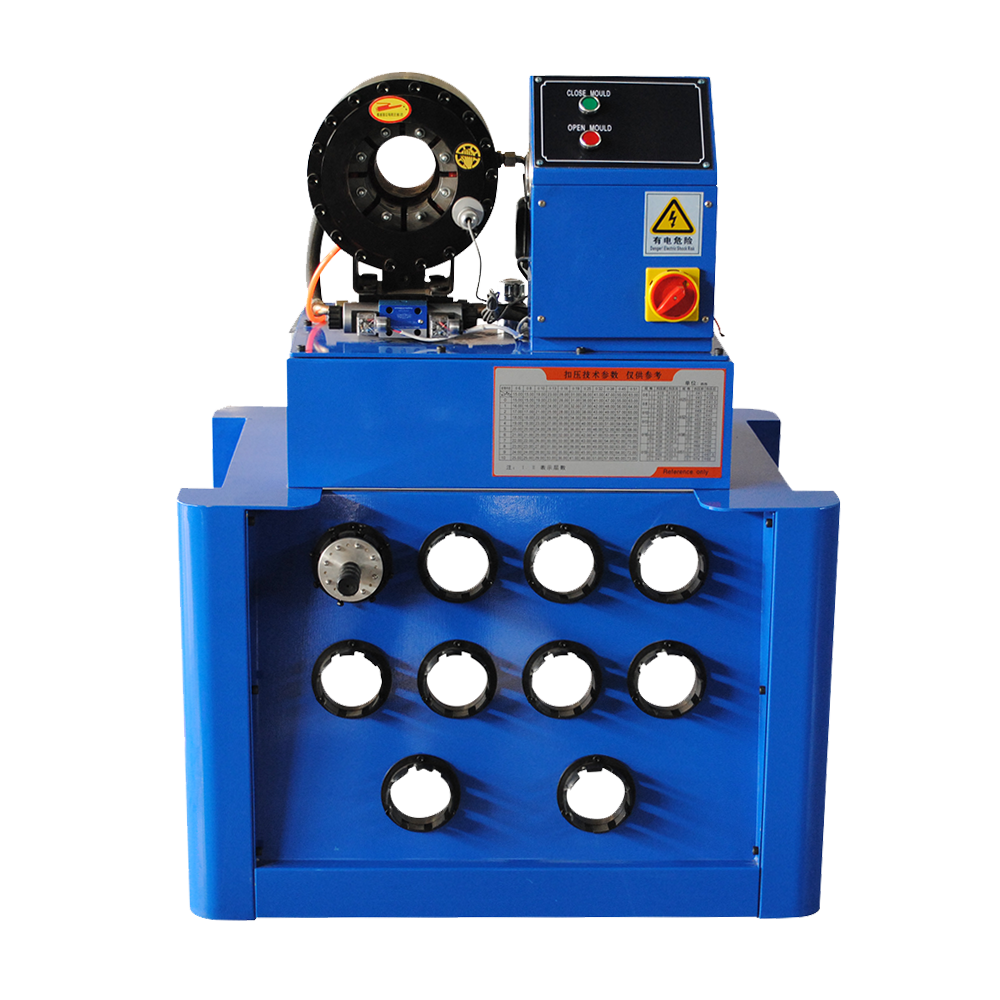

4.The prominent red knob on the machine controls the switch of the motor, while the green and red buttons on the control panel control mold clamping and mold opening, which is easy to operate.

5.Contains quick mold change function, with quick mold change tools, and also equipped with a mold rack.

6.The crimping range can be changed to 2 inch.

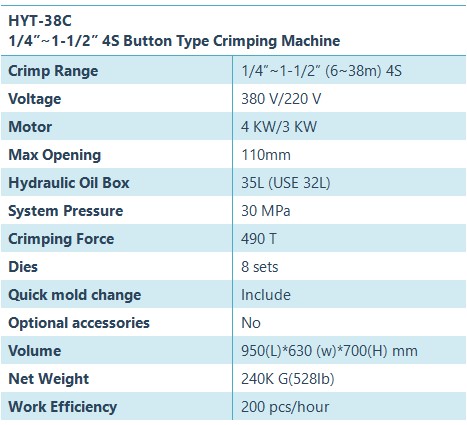

Technical Parameter：

Information：

Payment：Support T/T(Bank transfer),Weston Union,Paypal,Cred card,Online Pay and other payment method.

Packing：

First，put the machine on a fumigation-free wooden pallet and wrap it with moisture-proof plastic film.

Then, put it into a wooden box and fix the wooden box with a steel belt.

Finally,  use a forklift to transport the wooden box onto a truck.

Delivery Time：3~7 Days.

Port of dispatch：Tianjin,China.
